F5A AI MINI PC
Smarter AI Performance with Ryzen AI 9 HX 470
Built for Multitasking with Fast Memory and Storage
Pre-installed with Windows 11 pro, supports Linux and Ubuntu
Efficient Cooling System
OCuLink
4-screen Display, Efficient Work
Engineered for Speed. Built for Bandwidth

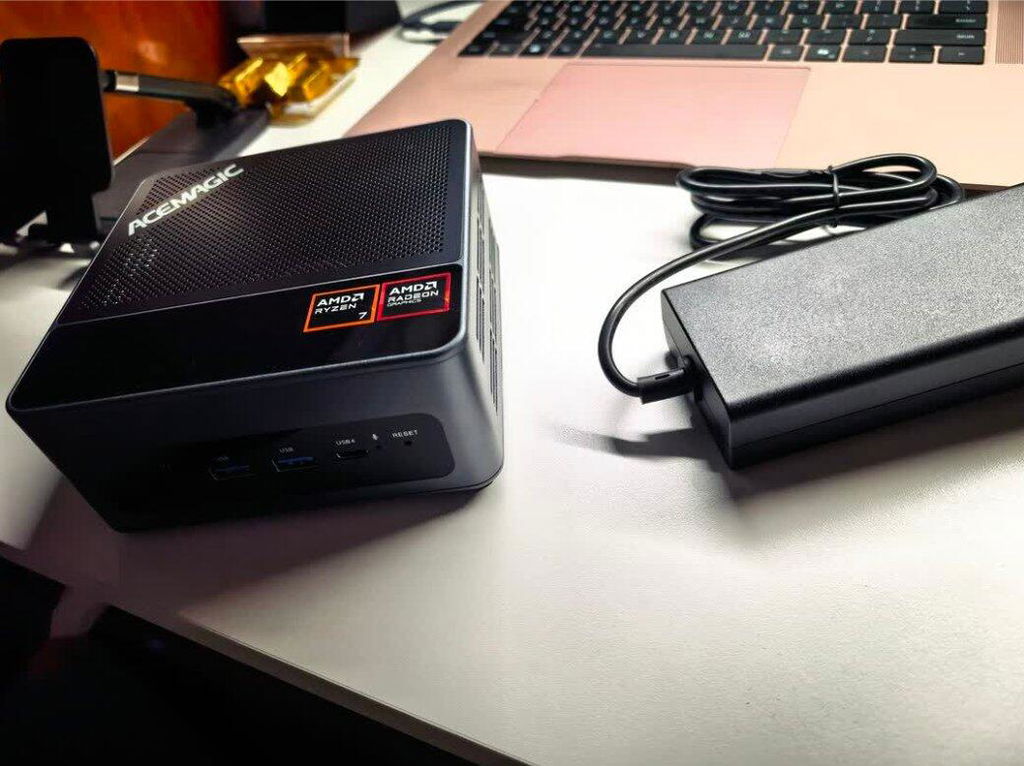

ACEMAGIC F5A AI Mini PC
2-years Warranty
What's in The Box?
Specification
AMD Ryzen AI 9 HX 470
AMD Ryzen™ 7 H 255
Processor
-
CPU
AMD Ryzen AI 9 HX 470
12 Cores / 24 Threads
Architecture: 4× Zen 5 + 8× Zen 5c
Base Clock: 2.0 GHz
Max Boost Clock: Up to 5.2 GHz
Cache: 12MB L2 + 24MB L3
Process Technology: TSMC 4nm FinFET -
GPU
Integrated AMD Radeon™ 890M Graphics (RDNA 3.5 Architecture)
16 Compute Units
Up to 3.1 GHz -
NPU
Integrated AMD Ryzen AI Engine (XDNA2 architecture)
Up to 55 TOPS NPU AI performance
Total AI Performance (CPU+GPU+NPU): Up to 86 TOPS
Memory & Storage
-
Memory
32GB LPDDR5X 8000MT/s (Onboard)
Non-upgradable -
Storage
Pre-installed 1TB M.2 2280 NVMe PCIe 4.0 x4 SSD
3 × M.2 2280 NVMe Slots （1*PCIe4.0x4 Slot，2*PCIe4.0x2 Slots）
Supports PCIe 4.0x4 NVMe SSD
SATA M.2 SSD Not Supported
Up to 4TB per Slot (12TB Total)
Wireless Connectivity
- WiFi WiFi 7
- Bluetooth Bluetooth 5.4
Output
-
Video
HDMI 2.1 x1 (8K@60Hz）
2 × USB4 Type-C ports, supporting data transfer speeds of up to 40 Gbps / DisplayPort 1.4 (8K at 60 Hz) / Supports 100 W Power Delivery input and 15 W Power Delivery output
DP2.1 x1 (8K@60Hz) - Audio 3.5 mm Audio Jack ×1
Ports & Buttons
-
Ports & Buttons
10/100/1000 Mbps/2.5 Gbps Auto-negotiating RJ45 Gigabit Ethernet Ports×2
USB3.2 Gen2 Type-A Portc×2（10Gbps)
USB3.2 Gen2 Type-A Port×1（10Gbps)
USB2.0 Type-A Port×1
USB4 Type-C×2 (Support DP1.4, 8K@60Hz , up to 40Gbps data transfer, PD 15W output, PD100W input）
DC IN×1
HDMI 2.1×1
DP2.1×1
3.5mm Audio Jackx1
Power Buttonx1
OCuLink Port×1
Base Configuration
- Power DC 19 V-6,3 A, 5.5 x 2.5 mm DC connector
- System Windows 11 PRO
- Dimensions 130 × 132 × 62mm
Cooling System
- Dual-fan cooling (CPU fan + system fan) + VC heat spreader, delivering up to 65W of performance
Processor
-
CPU
AMD Ryzen™ 7 H 255
8 Cores/16 Threads
3.8 GHz–4.9 GHz
Zen 4 Architecture
TSMC 4nm FinFET Process Technology
16 MB L3 Cache
TDP: 65W -
GPU
AMD Radeon™ 780M
Number of Graphics Cores: 12
Graphics Clock Speed: 2700 MHz
Memory & Storage
-
Memory
24GB (12GB × 2) LPDDR5 6400MT/s
Not Expandable or Upgradeable -
Storage
1TB M.2 2280 NVMe PCIe 4.0 x4 SSD
3x M.2 2280 Slots
3 Drive Slots Support M.2 NVMe PCIe 4.0 x4 SSDs, Up to 6 TB
Does Not Support SATA SSDs
Wireless Connectivity
- WiFi WiFi 6E
- Bluetooth Bluetooth 5.2
Output
-
Video
HDMI 2.1 x1 (8K@60Hz）
USB4 Type-C x2
DP2.1 x1 (8K@60Hz) - Audio 3.5 mm Audio Jack ×1
Ports & Buttons
-
Ports & Buttons
2 x 10/100/1000 Mbps/2.5 Gbps Auto-negotiating RJ45 Gigabit Ethernet Ports
2 x USB 3.2 Gen 2 Type-A Ports (10 Gbps) – Front Panel
1 x USB 3.2 Gen 2 Type-A Port (10 Gbps) – Rear Panel
1 x USB 2.0 Type-A Port – Rear Panel
2 x USB4 Type-C (Supports DP 1.4, 4K@60Hz, Up to 40Gbps Data Transfer, PD Output)
1 x DC IN
1 x HDMI 2.1
1 x DP 2.1
1 x 3.5mm Audio Jack
1 x Power Button
1 x OCuLink Port (Supports External Discrete Graphics)
Base Configuration
- Power DC 19 V-6,3 A, 5.5 x 2.5 mm DC Connector
- System Windows 11 PRO
- Dimensions 130 × 132 × 62mm
Cooling System
- Dual Fans (CPU Fan + System Fan) + Uniform Heat Dissipation Plate (VC), Maximum Power of 65 W
